Laser Cleaning Machine
Our laser cleaning machine uses a laser beam to clean surfaces. It removes contaminants like paint, rust, and oxides.
Common Types:
-
CW (Continuous Wave) Fiber Laser Cleaner:
-
Uses a handheld head with continuous laser.
-
Cost-effective solution.
-
Ideal for removing rust or thin paint from metals like stainless steel, mild steel, and iron.
-
Power options: 1500W, 2000W, 3000W.
-
-
Pulsed Laser Cleaner:
-
Uses a galvo scanning head with pulsed laser.
-
Suitable for cleaning high-value items without damaging the base material.
-
Effective for removing oil, stains, and dirt from molds.
-
Power options: 100W, 200W, 300W.
-

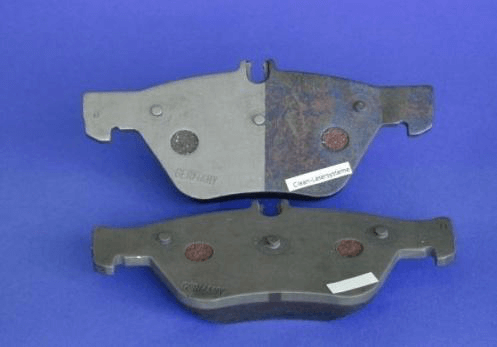

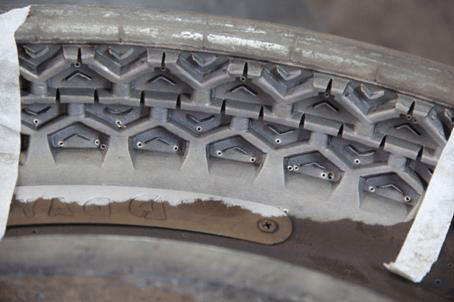

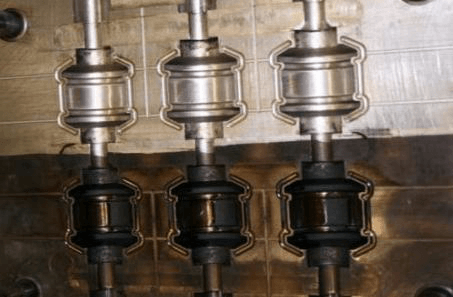

Surface treatment of laser rust cleaning machine
Surface steel preparation

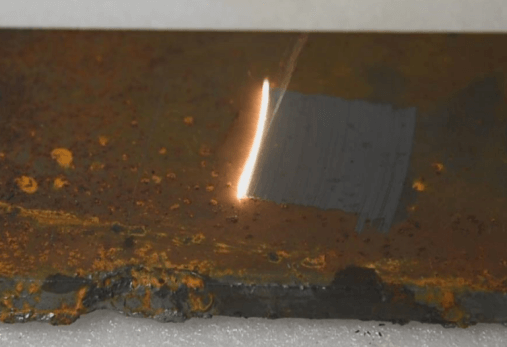

Rusting and oxidation
Galvanized zinc dyeing
Graffiti and sandstone

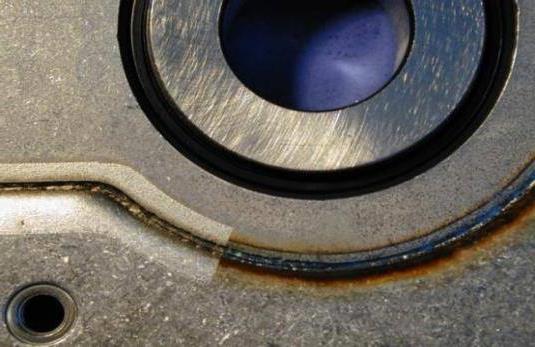

Stainless steel corrosion

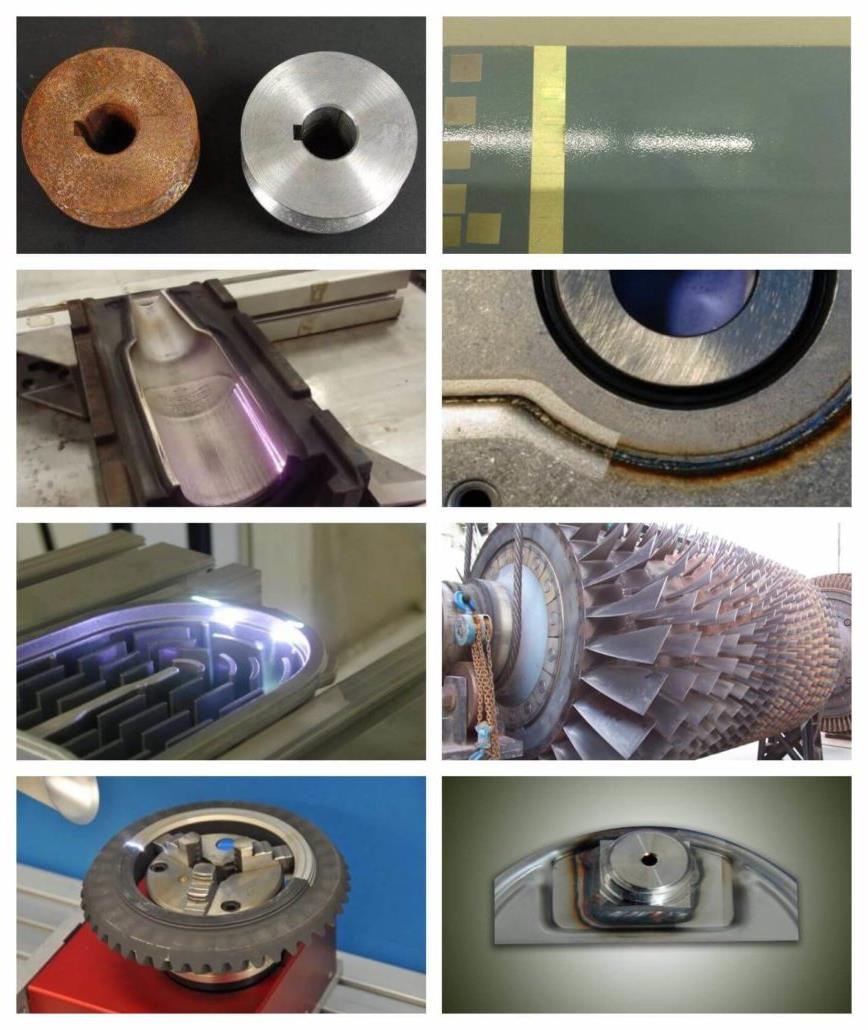

More surface treatment show
Operating Environment
| Content | Parameter |
| Supply voltage | 220V/110V/380V ±10%, 50/60Hz AC |
| Whole machine power consumption | 2500W (including chiller) |
| Place the environment | flat, no vibration, no impact |
| Working temperature | 0℃～40℃ |
| Working environment humidity | ≤80% |
Optical Parameters
| Content | Parameter |
| Average laser power | ≥1000W / 1500W/ 2000W |
| Power adjustment range (%) | 10-100 (gradient adjustable) |
| Repetition frequency (KHz) | 20-50 (gradually adjustable) |
| Cleaning efficiency (m2/h) | 5 |
| Focal length (mm) | 210/160 replaceable(with double red light pointer for focusing) |
| Cooling method | Water cooling |
Comparison with traditional clean methods
| Comparision | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
|---|---|---|---|---|
| Washiing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Washing Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Advantages of the fiber laser cleaning machine
- Non-contact cleaning, no damage to the workpiece
- Fiber laser cleaning machine can be precisely positioned and selectively cleaned
- There is no chemical cleaning agent, no consumables, and safe and environmental protection.
- easy to operate, can be carried or equipped with automatic robot cleaning
- High cleaning efficiency and time-saving
- Cleaning laser machine price from high to low for your choice, and maintenance-free
- The new portable laser cleaning machine can adapt to any size of space
